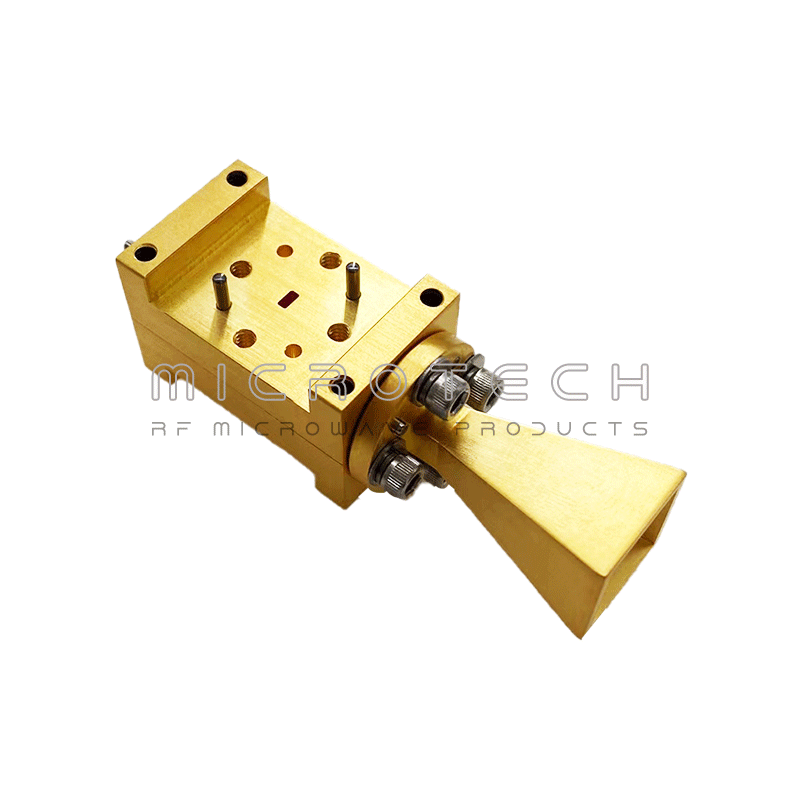

Dual Polarized Horn Antenna 20dBi Gain, 75GHz-110GHz Frequency Range

Dual Polarized Horn Antenna 20dBi Gain, 75GHz-110GHz Frequency Range Featured Image
  • Dual Polarized Horn Antenna 20dBi Gain, 75GHz-110GHz Frequency Range
  • Dual Polarized Horn Antenna 20dBi Gain, 75GHz-110GHz Frequency Range

Short Description:

The MT-DPHA75110-20 from Microtech is a full-band, dual-polarized, WR-10 horn antenna assembly that operates in the frequency range of 75 GHz to 110 GHz. The antenna features an integrated orthogonal mode converter that provides high port isolation. The MT-DPHA75110-20 supports vertical and horizontal waveguide orientations and has a typical 35 dB cross-polarization suppression, a nominal gain of 20 dBi at the center frequency, a typical 3db beamwidth of 16 degrees in the E-plane, a typical 3db beamwidth of 18 degrees in the H-plane. The input to the antenna is a WR-10 waveguide with a UG-385/U-M threaded flange.
Download Datasheet

Product Detail

Antenna Knowledge

Product Tags

Features

●  Full Band Performance
●  Dual Polarization

● High Isolation
● Precisely Machined and Gold Plated

Specifications

MT-DPHA75110-20

Item

Specification

Units

Frequency Range

75-110

GHz

Gain

20

dBi

VSWR

                 1.4:1

Polarization

Dual

 Horizontal 3dB Beam Width

33

Degrees

Vertical 3dB Bean Width

22

Degrees

Port Isolation

45

dB

Size

27.90*61.20

mm

Weight

77

g

Waveguide Size

WR-10

Flange Designation

UG-387/U-Mod

Body Material and Finish

Aluminum, Gold

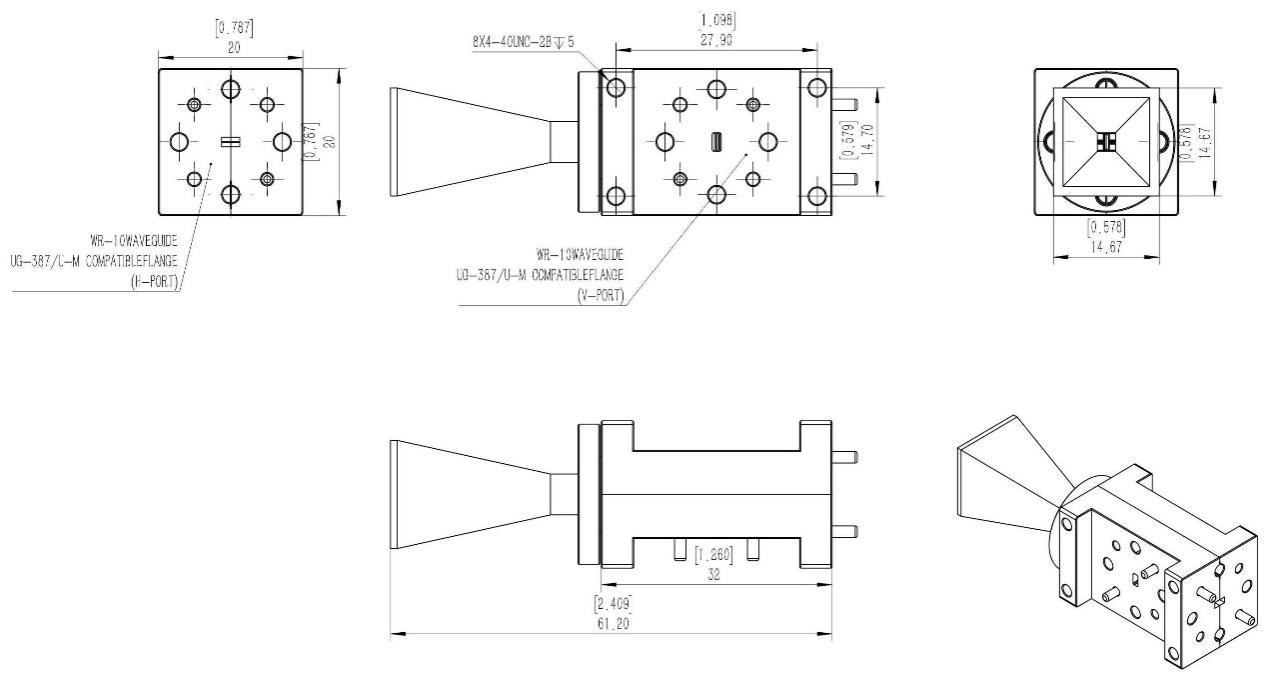

Outline Drawing

asd

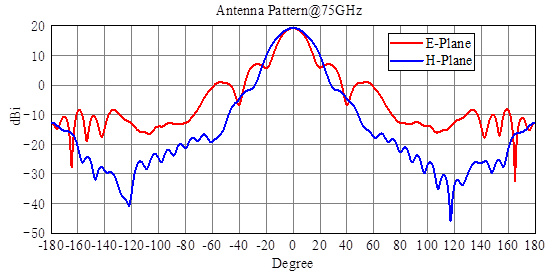

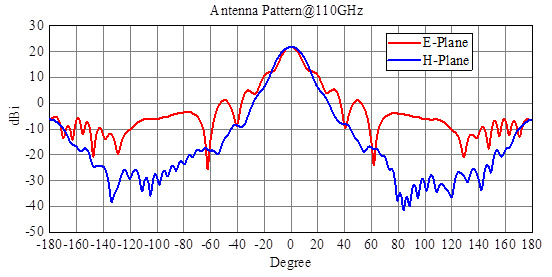

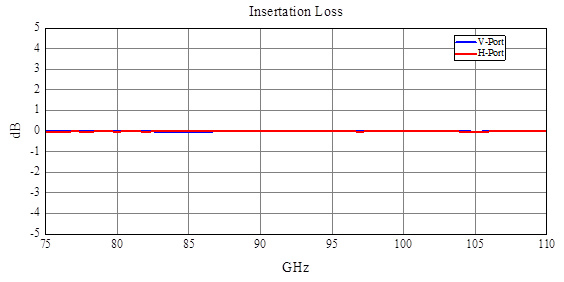

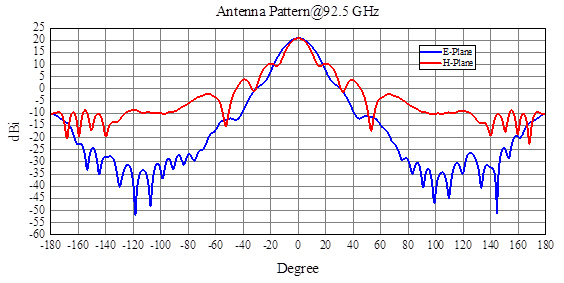

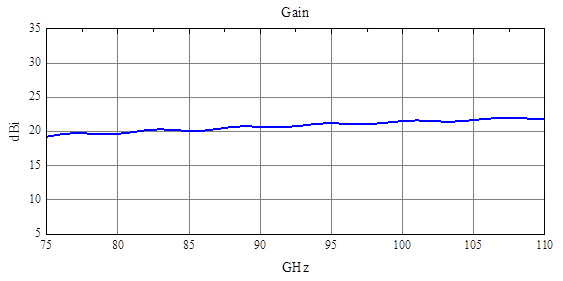

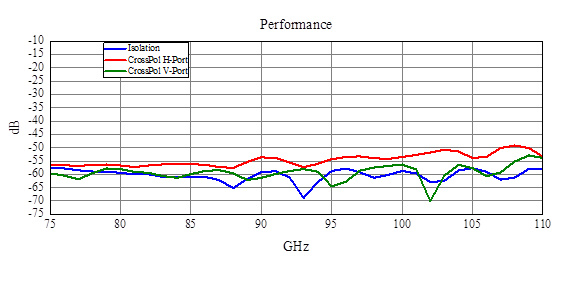

Test Results

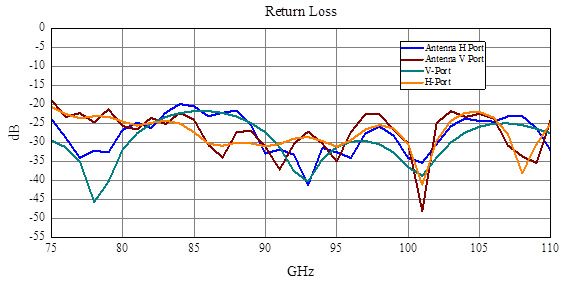

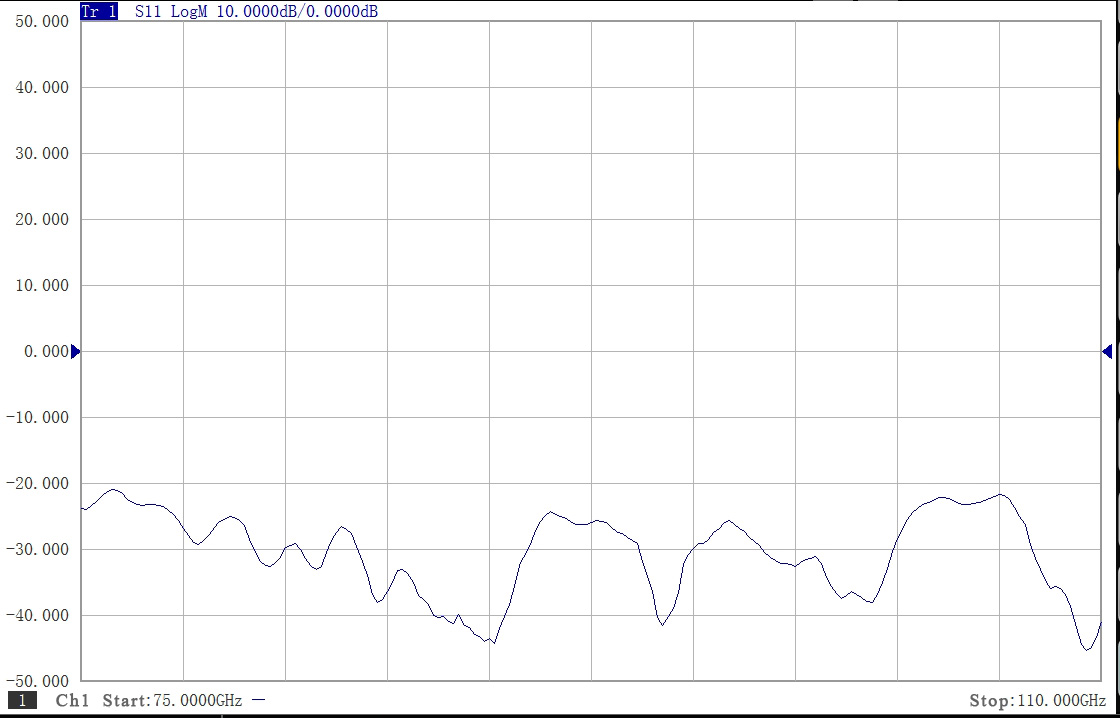

VSWR

asd
asd
asd
asd
asd
asd
asd
asd
  • Previous:
  • Next:

    • Large-area antennas are often composed of two components that perform different functions. One is the primary radiator, which is usually composed of a symmetrical vibrator, a slot or a horn, and its function is to convert the energy of high-frequency current or guided wave into electromagnetic radiation energy; the other is the radiation surface that makes the antenna form the required directional characteristics, For example, the mouth surface of the horn and the parabolic reflector, because the size of the radiation mouth surface can be much larger than the working wavelength, the microwave surface antenna can obtain high gain under a reasonable size.
