Broadband Horn Antenna 10 dBi Typ.Gain, 0.8 GHz-8 GHz Frequency Range

Broadband Horn Antenna 10 dBi Typ.Gain, 0.8 GHz-8 GHz Frequency Range Featured Image
  • Broadband Horn Antenna 10 dBi Typ.Gain, 0.8 GHz-8 GHz Frequency Range

Short Description:

The RM-BDHA088-10 from RF MISO is a broadband gain horn antenna that operates from 0.8 to 8 GHz. The antenna offers a typical gain of 10 dBi and VSWR1.5:1 with a SMA Female coaxial connector. Featuring high-power handling capability, low loss, high directivity and near constant electrical performance, the antenna is used in a variety of applications such as microwave testing, satellite antenna testing, direction finding, surveillance, plus EMC and antenna measurements.
Download Datasheet

Product Detail

ANTENNA KNOWLEDGE

Product Tags

Features

● Double-Ridge Waveguide
● Linear Polarization





● SMA Female Connector
● Mounting Bracket Included



Specifications

RM-BDHA088-10

Item

Specification

Units

Frequency Range

0.8-8

GHz

Gain

10 Typ.

dBi

VSWR

1.5:1 Typ.

Polarization

Linear

Connector

SMA-F

Material

Al

Surface Treatment

Paint

Size

288.17*162.23*230

mm

Weight

2.458

kg

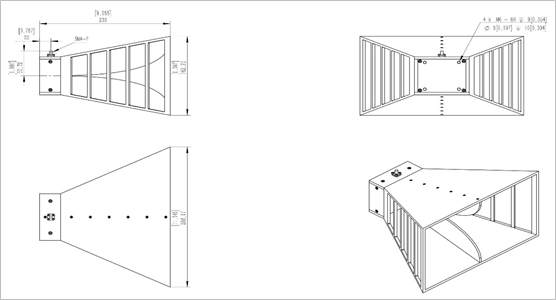

Outline Drawing

1
2

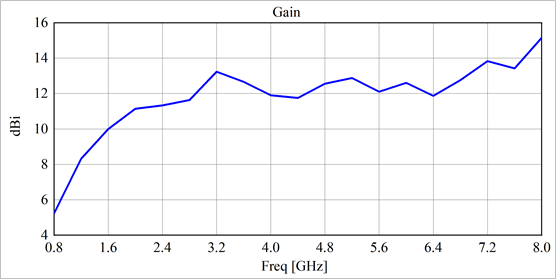

Data Sheet

3
4
5
6
7
8
9
10
  • Previous:
  • Next:

    • The role and status of the antenna

    The radio frequency signal power output by the radio transmitter is sent to the antenna through the feeder (cable), and is radiated by the antenna in the form of electromagnetic waves. After the electromagnetic wave reaches the receiving location, it is followed by the antenna (receiving only a very small part of the power), and sent to the radio receiver through the feeder. It can be seen that the antenna is an important radio device for transmitting and receiving electromagnetic waves, and there is no radio communication without the antenna.

    There are many kinds of antennas, which are used in different situations such as different frequencies, different purposes, different occasions, and different requirements. For the many varieties of antennas, proper classification is necessary:

    1. According to the purpose, it can be divided into communication antenna, TV antenna, radar antenna, etc.; according to the working frequency band, it can be divided into short wave antenna, ultrashort wave antenna, microwave antenna, etc.;

    2. According to the classification of direction, it can be divided into omnidirectional antenna, directional antenna, etc.; according to the classification of shape, it can be divided into linear antenna, planar antenna, etc.

    • RELATED PRODUCTS
