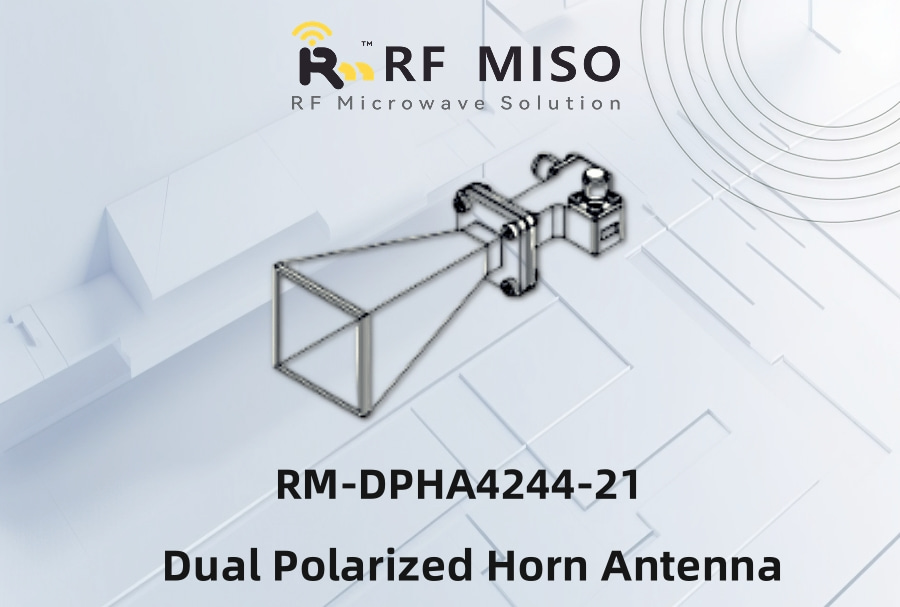

【Latest product】Dual Polarized Horn Antenna, RM-DPHA4244-21

Description

The RM-DPHA4244-21 is a full-band, dual-polarized, horn antenna assembly that operates in the frequency range of 42 to 44 GHz. The antenna features an integrated orthogonal mode converter that provides high port isolation. The RM-DPHA4244-21 has a typical 60 dB cross-polarization isolation, a nominal gain of 21 dBi at the center frequency, a typical 3db beamwidth of 13.82 degrees in the E-plane, a typical 3db beamwidth of 17.36 degrees in the H-plane.





Dual Polarized Horn Antenna

Model

Frequency Range

Gain

VSWR

RM-DPHA4244-21

42-440GHz

21Typ

1.2 Typ

Test Results

Outline Drawing

1
2

Outline Drawing with Mounting Bracket

Simulated Results

3

Gain

4

VSWR
