In the field of microwave antennas, directivity is a fundamental parameter that defines how effectively an antenna focuses energy in a specific direction. It is a measure of the antenna's ability to concentrate radio frequency (RF) radiation in a particular direction compared to an idealized isotropic radiator, which radiates energy uniformly in all directions. Understanding directivity is crucial for **Microwave Antenna Manufacturers**, as it influences the design and application of various antenna types, including **Planar Antennas**, **Spiral Antennas**, and components like **Waveguide Adapters**.
Directivity vs. Gain
Directivity is often confused with gain, but they are distinct concepts. While directivity measures the concentration of radiation, gain takes into account the antenna's efficiency, including losses due to materials and impedance mismatches. For example, a high-directivity antenna like a parabolic reflector focuses energy into a narrow beam, making it ideal for long-distance communication. However, its gain may be lower if the feed system or **Waveguide Adapter** introduces significant losses.
Waveguide to Coaxial Adapter
RM-WCA430
RM-WCA28
Importance in Antenna Design
For **Microwave Antenna Manufacturers**, achieving the desired directivity is a key design goal. **Planar Antennas**, such as microstrip patch antennas, are popular for their low profile and ease of integration. However, their directivity is typically moderate due to their broad radiation patterns. In contrast, **Spiral Antennas**, known for their wide bandwidth and circular polarization, can achieve higher directivity by optimizing their geometry and feeding mechanisms.
Planar Antenna

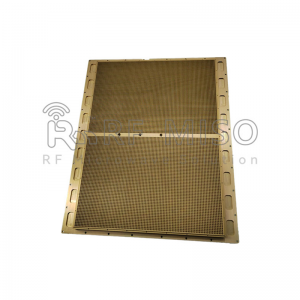

RM-PA7087-43
RM-PA1075145-32
Applications and Trade-offs
High-directivity antennas are essential in applications like satellite communication, radar systems, and point-to-point links. For instance, a high-directivity antenna paired with a low-loss **Waveguide Adapter** can significantly improve signal strength and reduce interference. However, high directivity often comes with trade-offs, such as narrow bandwidth and limited coverage. In applications requiring omnidirectional coverage, such as mobile networks, lower-directivity antennas may be more suitable.
Spiral Antenna
RM-PSA218-2R
RM-PSA0756-3
Measuring Directivity
Directivity is typically measured in decibels (dB) and calculated using the antenna's radiation pattern. Advanced simulation tools and testing setups, including anechoic chambers, are used by **Microwave Antenna Manufacturers** to accurately determine directivity. For example, a **Spiral Antenna** designed for broadband applications may undergo rigorous testing to ensure its directivity meets the required specifications across the entire frequency range.
Conclusion
Directivity is a critical parameter in microwave antenna design, influencing the performance and suitability of antennas for specific applications. While high-directivity antennas like parabolic reflectors and optimized **Spiral Antennas** excel in focused radiation applications, **Planar Antennas** offer a balance of directivity and versatility. By understanding and optimizing directivity, **Microwave Antenna Manufacturers** can develop antennas that meet the diverse needs of modern wireless communication systems. Whether paired with a precision **Waveguide Adapter** or integrated into a complex array, the right antenna design ensures efficient and reliable performance.
