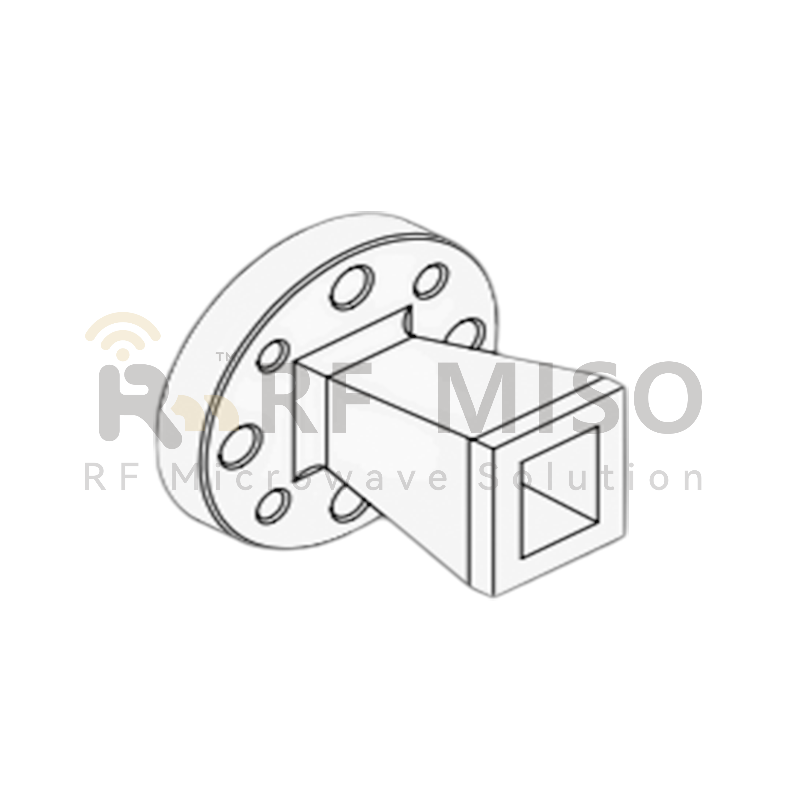

Standard Gain Horn Antenna 25 dBi Typ. Gain, 325-500GHz Frequency Range RM-SGHA2.2-25

Short Description:

RF MISO’s Model RM-SGHA2.2-25 is a linear polarized standard gain horn antenna that operates from 325 to 500 GHz. The antenna offers a typical gain of 25dBi and low VSWR 1.15:1. This antenna has flange input and coaxial input for customers to rotate.

Product Detail

ANTENNA KNOWLEDGE

Product Tags

Features

● Ideal for Antenna Measurements

● Linear Polarization

● Broadband Operation

● Small Size

Specifications

RM-SGHA2.2-25
Item	Specification	Units
Frequency Range	325-500	GHz
Wave-guide	2.2
Gain	25 Typ.	dBi
VSWR	1.15:1
Polarization	Linear
Cross Polarization	50	dB
Material	Brass
Size	17.3619.119.1(±5）	mm
Weight	0.013	kg

Previous: Broadband Horn Antenna 12 dBi Typ. Gain, 1-30GHz Frequency Range RM-BDHA130-12

Next: Broadband Horn Antenna 12 dBi Typ. Gain,2.5-30GHz Frequency Range RM-BDHA2530-15

Standard gain horn antenna is a type of antenna widely used in communication systems with fixed gain and beamwidth. This kind of antenna is suitable for many applications and can provide stable and reliable signal coverage, as well as high power transmission efficiency and good anti-interference ability. Standard gain horn antennas are usually widely used in mobile communications, fixed communications, satellite communications and other fields.
